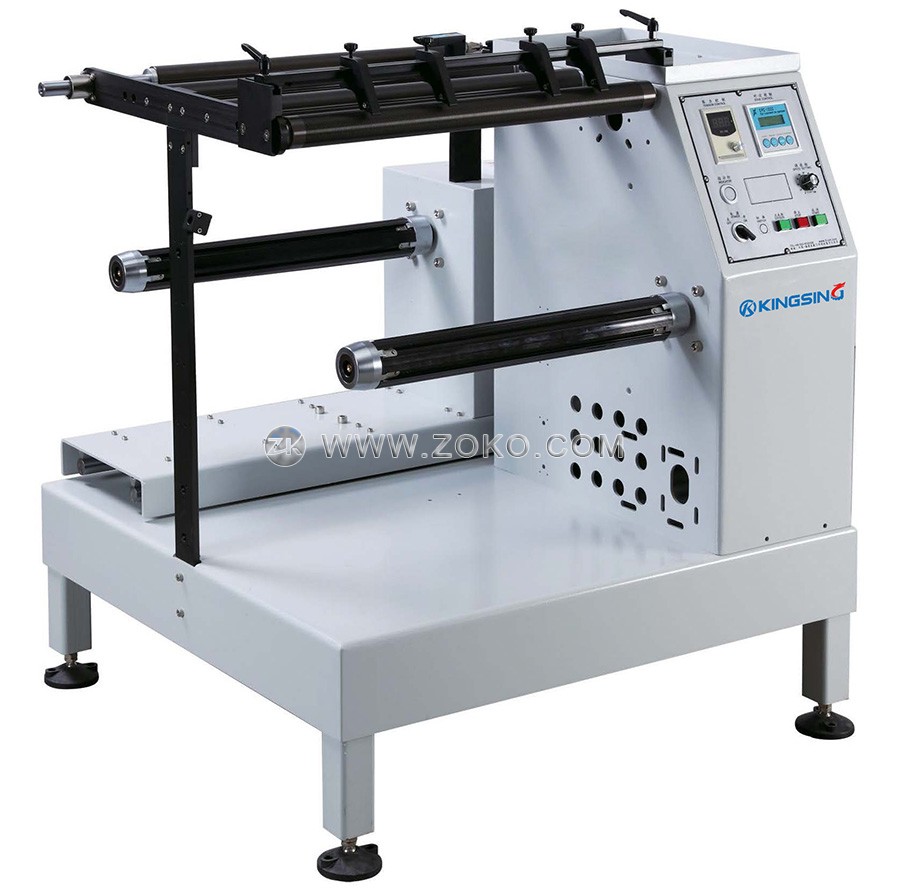

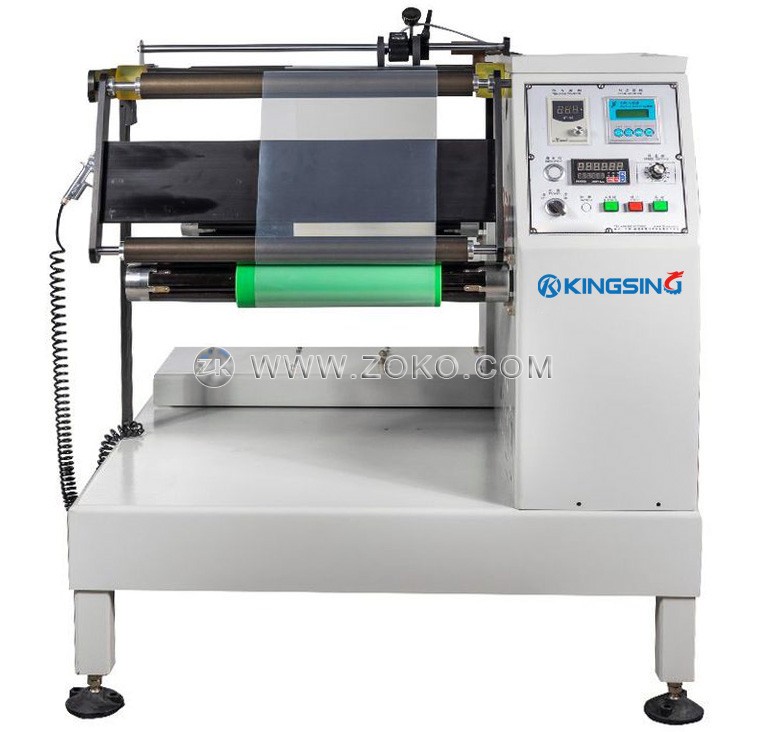

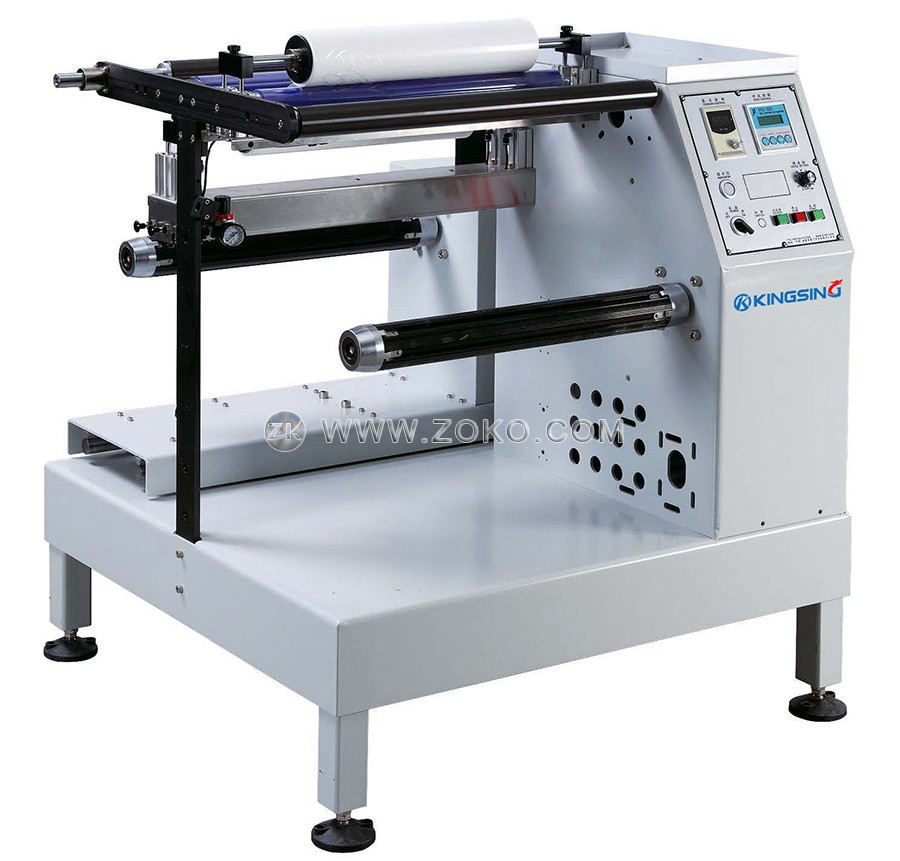

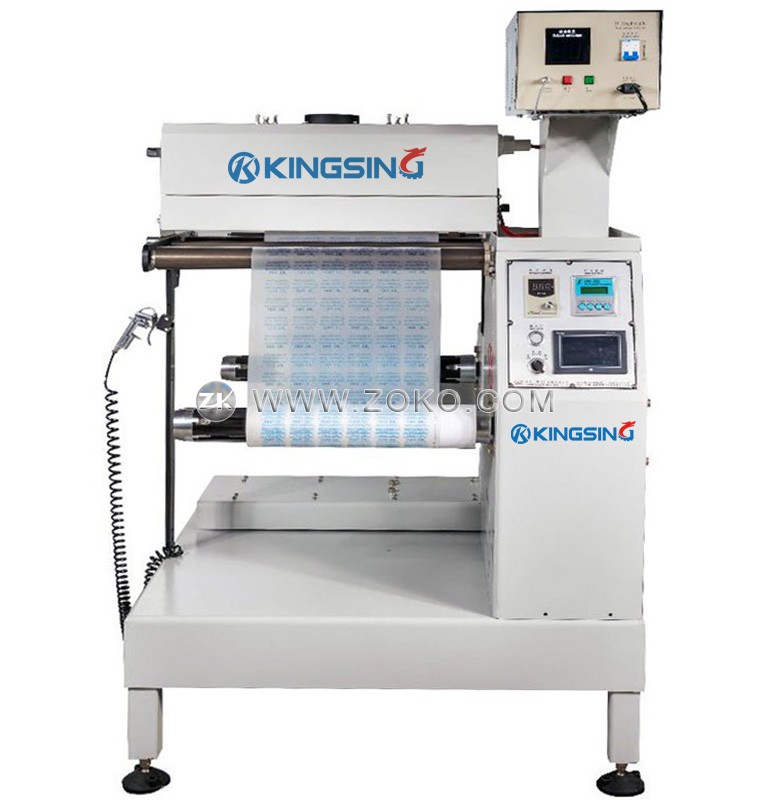

This is a heavy duty automatic deviation correction rewinder with built-in deviation correction control system, the machine runs smoothly and the rewinding effect is neat. A variety of additional equipments are for option, such as: meter counting or quantity counting device, which can automatically stop when the set number of meters or quantity is reached; dust removal device; tension control system; static electricity removal system; corona device;
 |  |  |  |

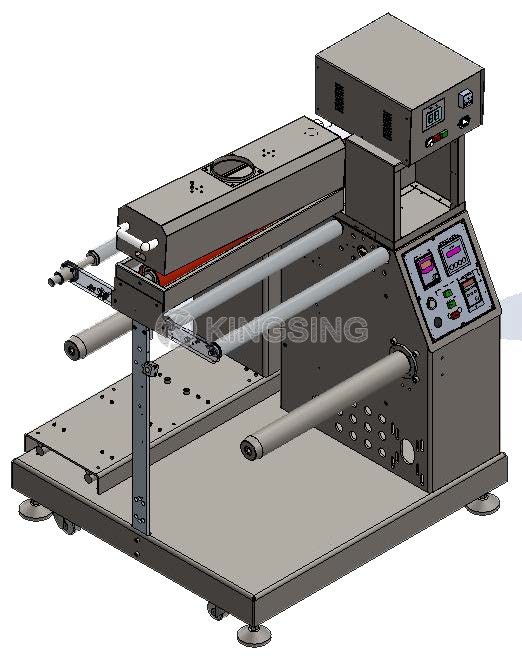

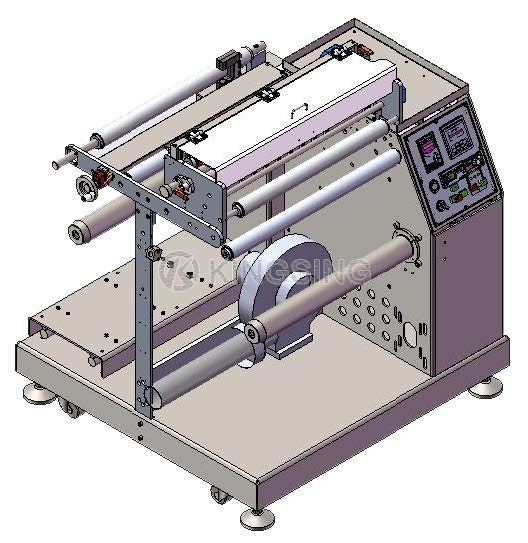

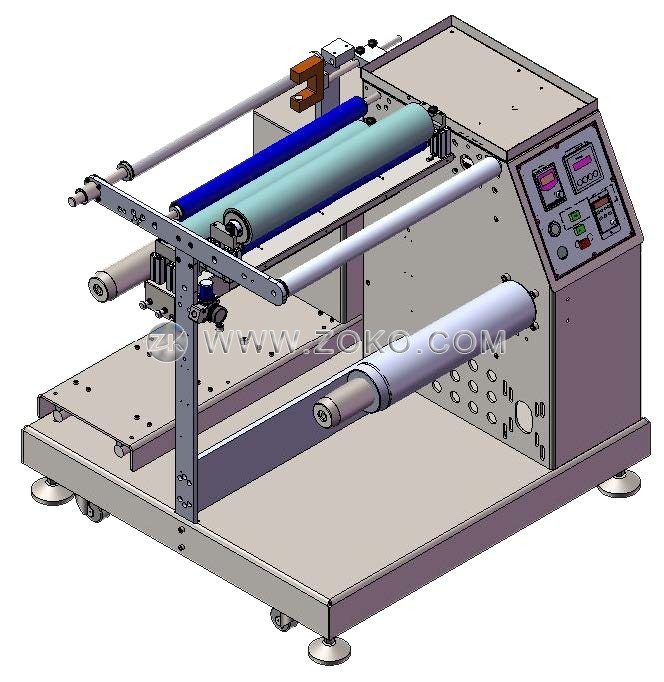

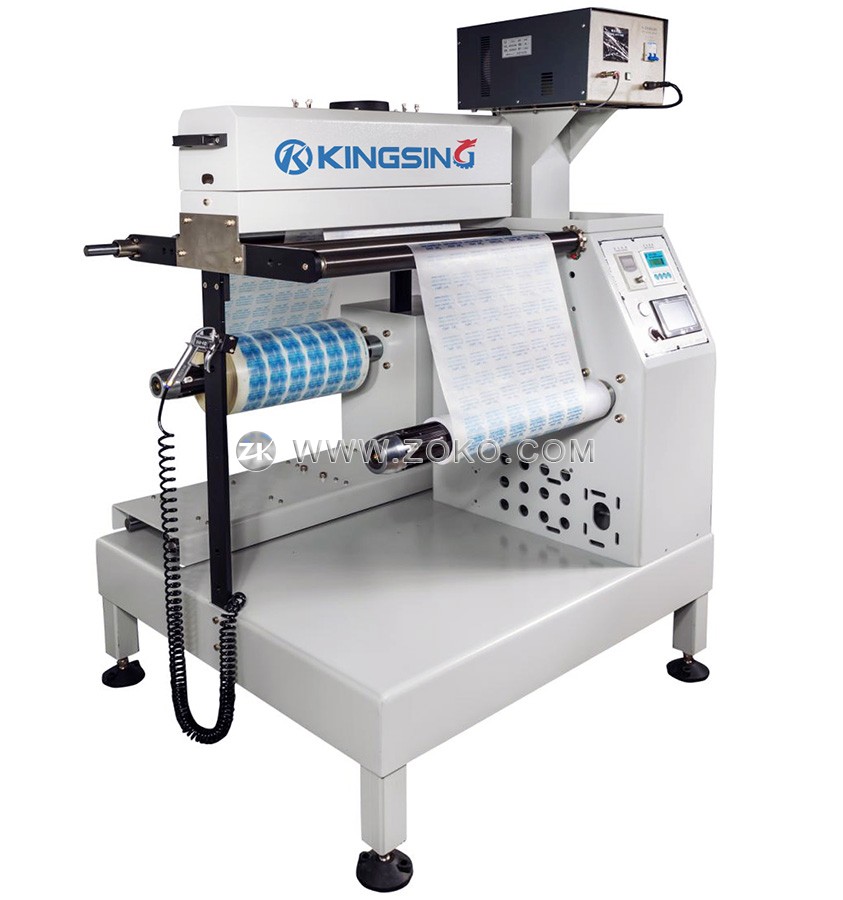

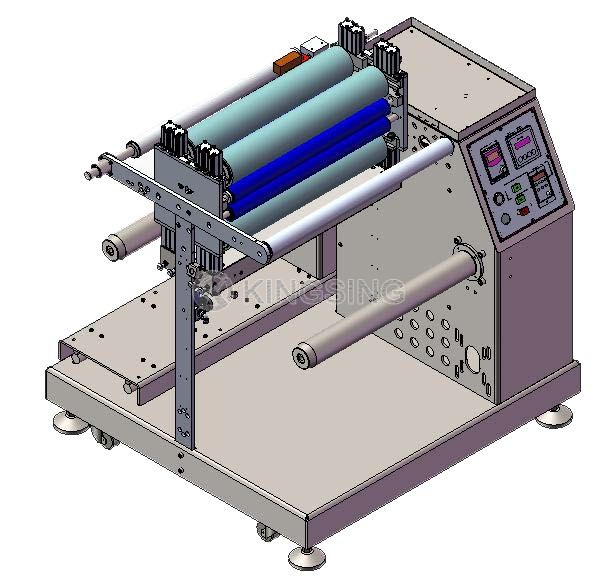

| 1 group of dust removal | 2 groups of dust removal | corona device | label slitter |
| Model | KS-L980A | KS-L980B | KS-L980C | KS-L980D | KS-L980E |
| Max. Width | 400mm | 600mm | 700mm | 900mm | 1000mm |
| Available Weight | 70kg | 70kg | 70kg | 100kg | 120kg |
| Max. Diameter | 550mm | 650mm | 650mm | 650mm | 650mm |
| Tension | 0~25N | ||||
| Power Supply | 220V 50/60Hz | ||||
| Net. Weight | 290kg | 330kg | 360kg | 560kg | 590kg |
Optional function list:
Count Quantity: automatically stop after reaching the set quantity
Count Meter: automatically stop after reaching the set length
Uniform Speed: keep linear speed when roll diameter changes
Multi-section Speed: advance deceleration and precise stop
Dust Eliminate: remove dust
Tension Control: electromagnetic tension control system
Corona Device: commonly used for pre-print processing
Label Slitter: slit labels and roll into small rolls
Static Eliminate: remove static electricity from materials
Pneumatic Pressing: material pressing device
Other functions can also be customized on demand.
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
