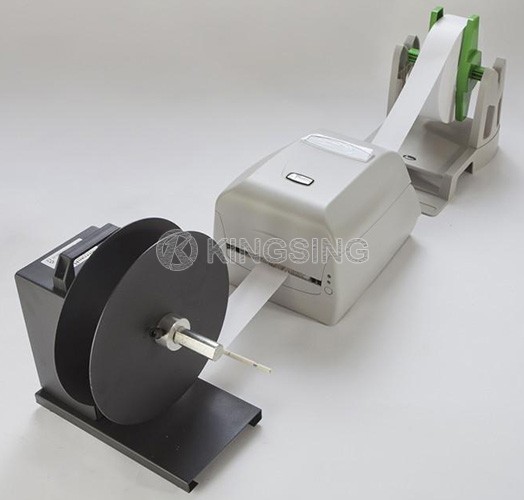

The label rewinder is often used to work with barcode label printers to automatically wind the printed labels into rolls, and it can also be used as a label prefeeder. It has a built-in label tension sensor, which can work synchronously with any brand of barcode label printers. It can automatically start when printing labels and stop automatically when winding is completed.
Use a label rewinder to keep your desk tidy, and printed labels are automatically recycled into rolls. If a barcode printer is equipped with 2 rewinders, one can be used for prefeeder and the other for rewinder.
 |  |  |
| Model | KS-L902A | KS-L902B | KS-L902C | KS-L902D | KS-L902E |
| Max. Label Width | 90mm | 120mm | 150mm | 180mm | 230mm |
| Rewind Speed | 1~10"/s | 1~15"/s | |||
| Max. Roll Diameter | 230mm | 360mm | |||
| Inner Core Size | 1" (24~26mm), 1.5" (38~40mm), 3" (76~78mm) | ||||
| Function | It can be used as label pre-feeder & label rewinder. | ||||
| Rewind Direction | Forward and reverse | ||||
| Power Supply | 100~240V 50/60Hz | ||||
| Net. Weight | 4kg | 5kg | 6.5kg | 7.5kg | 14kg |
| Dimension | 240×230×260mm | 276×230×260mm | 306×230×278mm | 336×230×278mm | 453×360×420mm |
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
